Add new Record - Android database SQLite (p7)

Tutorial description: The product of this tutorial is to invoke (from MENU) another screen to insert a new record. The first screen is the list of all records. User is able to add a new record through this screen. The screenshots below is the output.

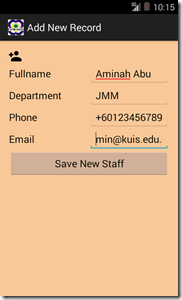

add-new-record screenshot1add-new-record screenshot2add-new-record screenshot3

Before you proceed with the tutorial, you might want to read the previous tutorial - Update Record by long-press ListView - Android database SQLite (p6)

Download the complete code here  ic_file_download_black_24dp_2x4 http://khirulnizam.com/android/FSTMDirektori.zip

STEP 1: Add a new screen named AddNewRecord

Right-click on the project name –>New –> Other… Select the Android Activity –> Blank Activity. Provide the new Activity (screen) name AddNewRecord

add new screen to display complete record

new screen select Android ctivity

Provide the Activity Name as AddNewRecord, and hit Finish

new activity add-new-record

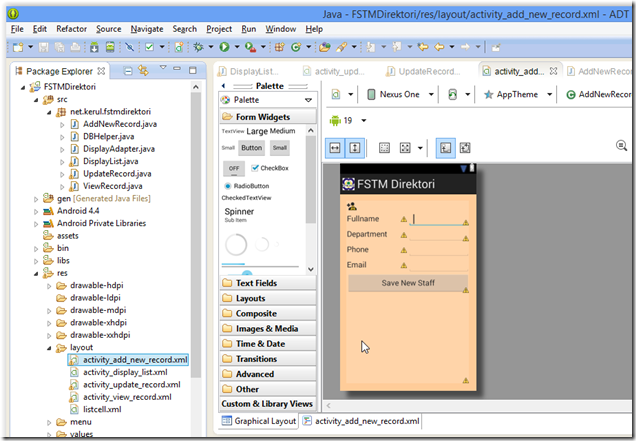

STEP 2: Design the layout for AddNewRecord screen

add-new-record-layout-design

The XML file

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:background="#FFCC99"
tools:context=".AddNewRecord" >

<!-- FILE activity_update_record.xml -->
<TableLayout
android:id="@+id/tableLayout1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_alignParentLeft="true"
android:layout_alignParentRight="true"
android:layout_alignParentTop="true" >

<TableRow
android:id="@+id/tableRow6"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<ImageView
android:id="@+id/imageView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:src="@drawable/ic_person_add_black_24dp" />

</TableRow>

<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<TextView
android:id="@+id/textView1"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Fullname"
android:textAppearance="?android:attr/textAppearanceMedium" />

<EditText
android:id="@+id/txtnama"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:ems="10" >

<requestFocus />
</EditText>
</TableRow>

<TableRow
android:id="@+id/tableRow2"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<TextView
android:id="@+id/textView2"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Department"
android:textAppearance="?android:attr/textAppearanceMedium" />

<EditText
android:id="@+id/txtjbt"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:ems="10" />
</TableRow>

<TableRow
android:id="@+id/tableRow3"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<TextView
android:id="@+id/textView3"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Phone"
android:textAppearance="?android:attr/textAppearanceMedium" />

<EditText
android:id="@+id/txttelefon"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:ems="10"
android:inputType="phone" />
</TableRow>

<TableRow
android:id="@+id/tableRow4"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<TextView
android:id="@+id/textView4"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Email"
android:textAppearance="?android:attr/textAppearanceMedium" />

<EditText
android:id="@+id/txtemel"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:ems="10"
android:inputType="textEmailAddress" />
</TableRow>

<TableRow
android:id="@+id/tableRow5"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<Button
android:id="@+id/btnsavenew"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Save New Staff" />

</TableRow>

</TableLayout>

</RelativeLayout>


The Java code to perform Save New Record.


AddNewRecord.java


package net.kerul.fstmdirektori;

import android.net.Uri;
import android.os.Bundle;
import android.app.Activity;
import android.content.ContentValues;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;

public class AddNewRecord extends Activity {
private EditText txtnama, txtjbt, txttelefon, txtemel;
private Button btnsave;
private DBHelper mHelper;
private SQLiteDatabase dataBase;
private String id,name,telno,email,dept;//to hold the data strings

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_add_new_record);

mHelper=new DBHelper(this);
dataBase = mHelper.getWritableDatabase();

//initiate all textbox container to hold the data for the staff
txtnama=(EditText)findViewById(R.id.txtnama);
txtjbt=(EditText)findViewById(R.id.txtjbt);
txttelefon=(EditText)findViewById(R.id.txttelefon);
txtemel=(EditText)findViewById(R.id.txtemel);

btnsave=(Button)findViewById(R.id.btnsavenew);
btnsave.setOnClickListener( new OnClickListener(){
public void onClick(View v){
//capture amendment
name=txtnama.getText().toString();
telno=txttelefon.getText().toString();
email=txtemel.getText().toString();
dept=txtjbt.getText().toString();

saveData();
}
});//end btnsave setOnCLickCListener
}

//save new record
private void saveData(){
ContentValues values=new ContentValues();

values.put(DBHelper.NAMA,name);
values.put(DBHelper.JBT,dept);
values.put(DBHelper.EMEL,email );
values.put(DBHelper.TELEFON,telno );

System.out.println("");

//save new record to the database into database
dataBase.insert(DBHelper.TABLE_NAME, null, values);

//close database
dataBase.close();
finish();


}

}

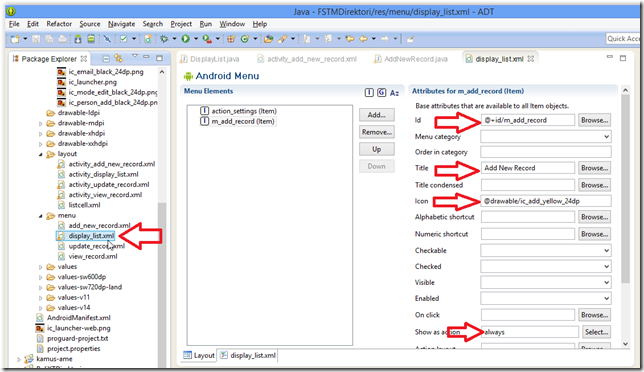

STEP 3: Add MENU on ActionBar to call the AddNewRecord screen


add-new-record-menu-add


Get back to the main screen (DisplayList.java). Add the onCreateOptionsMenu and onOptionsItemSelected in the DisplayList.java


add-new-record invoke screen from menu


DisplayList.java – updated


package net.kerul.fstmdirektori;

import java.util.ArrayList;

import android.app.Activity;
import android.app.AlertDialog;
import android.content.DialogInterface;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.AdapterView.OnItemLongClickListener;
import android.widget.ListView;
import android.widget.Toast;

public class DisplayList extends Activity {

private String id;//to hold selected stafid
private DBHelper mHelper;
private SQLiteDatabase dataBase;

//variables to hold staff records
private ArrayList<String> stafid = new ArrayList<String>();
private ArrayList<String> nama = new ArrayList<String>();
private ArrayList<String> jbt = new ArrayList<String>();

private ListView userList;
private AlertDialog.Builder build;

@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_display_list);

userList = (ListView) findViewById(R.id.List);

mHelper = new DBHelper(this);

//click to update data
userList.setOnItemClickListener(new OnItemClickListener() {
public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
long arg3) {

Intent i = new Intent(getApplicationContext(),
ViewRecord.class);
i.putExtra("stafid", stafid.get(arg2));
startActivity(i);
}
});//end setOnItemClickListener

//long-press to update data
userList.setOnItemLongClickListener(new OnItemLongClickListener() {

public boolean onItemLongClick(AdapterView<?> arg0, View arg1,
final int arg2, long arg3) {
Intent i = new Intent(getApplicationContext(),
UpdateRecord.class);
i.putExtra("stafid", stafid.get(arg2));
startActivity(i);
return true;
}
});//end setOnItemLongClickListener


}

@Override
protected void onResume() {
//refresh data for screen is invoked/displayed
displayData();
Toast.makeText(getApplicationContext(), "TAP on rescord to view complete info, \n LONG-TAP to update...", Toast.LENGTH_LONG).show();
super.onResume();
}

/**
* displays data from SQLite
*/
private void displayData() {
dataBase = mHelper.getWritableDatabase();
//the SQL command to fetched all records from the table
Cursor mCursor = dataBase.rawQuery("SELECT * FROM "
+ DBHelper.TABLE_NAME, null);

//reset variables
stafid.clear();
nama.clear();
jbt.clear();

//fetch each record
if (mCursor.moveToFirst()) {
do {
//get data from field
stafid.add(mCursor.getString(mCursor.getColumnIndex(DBHelper.STAFID)));
nama.add(mCursor.getString(mCursor.getColumnIndex(DBHelper.NAMA)));
jbt.add(mCursor.getString(mCursor.getColumnIndex(DBHelper.JBT)));

} while (mCursor.moveToNext());
//do above till data exhausted
}

//display to screen
DisplayAdapter disadpt = new DisplayAdapter(DisplayList.this, stafid, nama, jbt);
userList.setAdapter(disadpt);
mCursor.close();
}//end displayData




@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.display_list, menu);
return true;
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
// Handle item selection
if (item.getItemId()==R.id.m_add_record) {

//invoke the AddNewRecord screen using Intent
Intent i = new Intent(getApplicationContext(),
AddNewRecord.class);
startActivity(i);
}
return true;
}

}//end DisplayList class


Now, try compiling and run…
